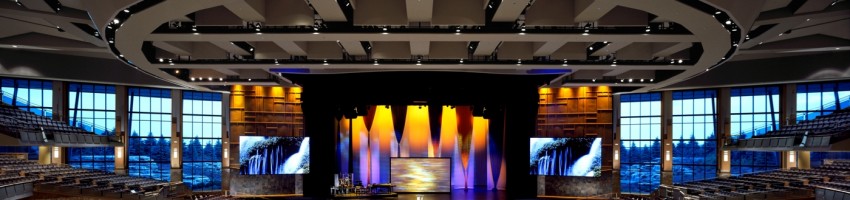

Main Auditorium

Stats

  • Physical Stats
    • How many seats: 7200
    • Stage square footage: 120×40 7000 sq. ft w/ gala
    • Stage size: 94ft wide x 57ft high
  • Technical Stats
    • Noise floor when nothing is turned on: 54 dbspl
    • Brightness of the LED at 100% 202,000 lumens
    • LED brightness control: DMX512
    • % of brightness we run the LED’s at for a typical service: 20
    • Number of LED pixels: 832×1472 (1,224,704)
    • Weight of LED screens: 8,000 lbs per screen
    • Gala lift load capacity: 50,000 lbs.
    • Gala speed: 20 feet/1 minute
    • Gala size: 1000 square feet
    • Lighting bridge counter weight, weight: 8,000 lbs
    • Height of stage house: 80’ exterior, 70’ to stage grid
    • Cat walk height: 43’
    • Lighting Bridge Height: adjustable (but usually at 40’)
    • Wagon House dimension: 120’x 40’
    • Wagon house door size: 30’ x 90’
    • Wagon House Door Weight – 30,000 lbs
    • Number of sheets of plywood in wagon door: 100
    • Number of static light fixtures: 331
    • Number of Dimmers/universes: 1,536/8
    • Number of moving light fixtures: 83
    • Speed of window shades: 6 ft/sec
    • Size of windows: 14’x 40’
    • Number of Triax camera positions: 54
    • Number of custom wall plates: 100+
    • Number of video racks: 40
    • Shade control platform: Mac Mini
    • Shade control software: iRig
    • Shade control software design: Willow Creek Systems Team
    • Wagon size: 8’x16’
    • Number of Wagons: 18
    • # of bands set up at any one time: 3
    • # of motorized wagons: 2
    • Largest wagon move: Orchestra
    • The room most like NASA: video control room
    • # of plasma/flat screen displays in new building: 84
    • total audio system wattage: 119,000
    • Number of CLEARCOM stations: 40
    • Proscenium width: 90 feet
    • Number of Audio inputs on stage: 160
    • Number of Speaker cabinets: 106
  • Volunteer Stats
    • Number of hours worked (for construction): incalculable
    • Feet of bridges welded, painted, assembled: 400ft
    • Money saved by using our staff and volunteers: $4.3 mil
    • of production volunteers required for a service 30

Video

  • VIDEO DISPLAYS – all 16:9 widescreen format
  • Main side screens
    • two Mitsubishi Diamondvision AVL-ID5 LED screens
    • 14×24 ft – 5.08mm dot pitch
    • Hi-definition 720p (native 832×1472 resolution)
    • 2000 NITS brightness (200,000 lumens)
    • normally run at 15-20% brightness
    • can move together at center stage to form one giant 14x48ft single image
  • On Stage center screen
    • one 13’10”x24’6” ft Rear Projection Screenworks truss screen, flown (overall frame size= 14’10”x25’6”)
    • two Barco ELM-R12 DLP projectors, double stacked (Barco website link)
    • 24,000 lumens total
    • Barco 0.8 wide angle lenses (0.64 throw ratio)
  • Under Balcony Plasmas
    • twelve Panasonic TH-42PWD6UY 42″ Plasmas
    • main & mez levels in handicapped & obstructed view seating areas
  • Balcony Projectors
    • four 6’8″x11’4″ rear projection Screenworks “Permscreen” screens
    • four Sanyo PLC-XF35 6200 lumen LCD projectors
    • dual lamp for redundancy
  • Handicapped & Parent’s rooms
    • 32 Philips 17″ LCD TV’s
    • NEC 42” Plasma in Mother’s room
  • Lobby Plasmas
    • 11 Samsung PPM42S3 42” Plasmas & 4 Samsung PPM63H3 63” Plasmas
    • 20 LG M4210C-BA 42” HDTV LCD’s in two 3×3 monitor walls
  • Backstage & Green room
    • Samsung Plasmas
    • Philips LCD’s
  • Front Row & Bullpen Prompters
    • Samsung 42” Plasmas
  • Display control systems
    • Under balcony Plasmas
      • Extron IP-6 ethernet RS-232 device
    • Balcony Projectors
      • Sanyo PJNet Ethernet cards in each projector
    • Lobby Plasmas
      • Contemporary Research RS-232 Tuner box
      • Control via in house MATV cable system
    • Samsung LCD TV’s
      • Contemporary Research IR control box
      • Control via in house MATV cable system
    • LG LCD TV’s
      • LG IPD-710F Digital Signage over IP cards

Audio

  • Main Line Array – self powered speakers
    • 14 Meyer MILO main L/R Music array loudspeakers
    • 4 Meyer MILO 120 expanded Music coverage boxes
    • 22 Meyer M2Ds L/R Voice Array
    • 1 Meyer MSL-4 Centerfill
    • 4 Meyer MSL-4 – L Track Sidefills
    • 2 Meyer DF-4 downfills
    • 7 Meyer M1D Loudspeakers frontfills
  • Subwoofers
    • 14 Meyer 1100-LFC subs – self powered (12 flown, 2 in sub bunkers
  • Under Mezzanine Fills
    • 24 Meyer UPM-1 conventionally powered delay
    • 2 Meyer P-1 Processors UPM speaker controller
    • 8 QSC – CX702 amplifiers
  • Under Balcony Fills
    • 34 Meyer UPM-1 conventionally powered delay
    • 2 Meyer P-1 Processors UPM speaker controller
    • 8 QSC – CX702 amplifiers
  • Upper Balcony Delay Rung – self powered speakers
    • 9 Meyer UPA-1P
  • Control/Sound system processor
    • 4 BSS London Blu-806 Dante enabled signal processors
    • 4 Meyer Galileo 616 6 in 16 out system processor
    • 2 Meyer Galileo 408 4 in 8 out system processor
    • London Architect 6.00
    • Compass control software v.3.4.0
  • Diagnostics
    • (3) Meyer – RMServers
    • Dante Controller

Lighting

  • Static Fixtures – House lighting
    • 210 ETC S4 Pars
    • 52 ETC S4 Junior 26 degree
    • 14 ETC S4 Junior 36 degree
  • Static Fixtures – Special lighting
    • 10 ETC S4 5 degree 750 watt
    • 38 ETC S4 10 degree 750 watt
    • 2 ETC S4 15-30 degree zoom
  • Static Fixtures – Stage Zone lighting
    • 20 ETC S4 36 degree
    • 20 ETC S4 50 degree
    • 15 Altman Econocycs
  • Moving Light Fixtures
    • 32 City Theatrical Autoyoke 10 degree with Iris and focus
    • 18 SGM Giotto 400 wash
    • 21 Martin Mac 2000 wash
    • 10 Varilite VL3000 Spot
    • 8 High End Systems X-spot Xtreme
    • 11 Robe LED wash 136
  • Accessories
    • 118 full size top hat for S4 par
    • 66 full size top hat for S4 Junior
    • 8 Wybron ForeRunner Scrollers
    • 40 Pathway Pathport network nodes
    • 11 3-Com 24 port ethernet switch POE
    • Renewedvision PVP motion video server Midi controlled
  • Lighting Console
    • 2 MA Lighting Full Size Grand MA consoles (8 universe)
  • Lighting Design
    • WSWG lighting creation workstation
  • Dimming
    • 1200 ET IPS Intelligent Raceway distributed dimming
    • 3 ET 96 channel Capio Racks
    • ET 48 channel Capio Rack
    • 2 ET 24 channel Capio Racks
    • ETC 12 channel Sensor Rack
